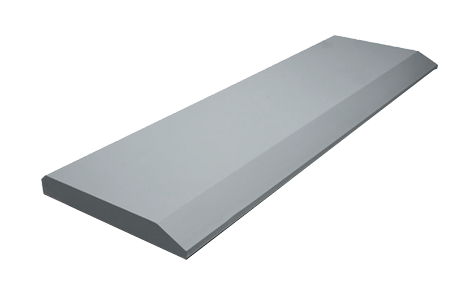

Bolt on edges (500HB) undrilled
Bolt on edges are used in combination with base edges. The bolt on edges are reversible, which means that you can unscrew it when one side is worn out, turn it, bolt it again and keep running until both sides are worn out.
| Part.no. | Dimension (height x thickness x length) mm | Weight(kg) | Full bundle(pcs) |
| 56015015-6 | 150x15x6100 | 100 | 3 |
| 56015020-6 | 150x20x6100 | 128 | 3 |
| 56020020-6 | 200x20x6100 | 184 | 3 |
| 56025020-6 | 250x20x6100 | 220 | 3 |
| 56025025-6 | 250x25x6100 | 292 | 3 |
| 56028025-6 | 280x25x6100 | 315 | 3 |
| 56030025-6 | 300x25x6100 | 342 | 3 |
| 56030030-6 | 300x30x6100 | 439 | 3 |
| 56030035-6 | 300x35x6000 | 425 | 3 |
| 56030040-6 | 300x40x6100 | 523 | 3 |
| 56033025-6 | 330x25x6100 | 375 | 3 |
| 56033030-6 | 330x30x6100 | 448 | 3 |
| 56033035-6 | 330x35x6000 | 474 | 3 |
| 56033040-6 | 330x40x6100 | 617 | 3 |
| 56035030-6 | 350x30x6100 | 458 | 3 |
| 56036030-6 | 360x30x6100 | 549 | 1 |
| 56036040-6 | 360x40x6100 | 635 | 1 |
| 56038030-6 | 380x30x6100 | 519 | 1 |
| 56038035-6 | 380x35x6000 | 582 | 1 |
| 56040050-6 | 400x50x6000 | 960 | 1 |
| 56048030-6 | 480x30x6100 | 663 | 1 |
| 56048035-6 | 480x35x6000 | 747 | 1 |
