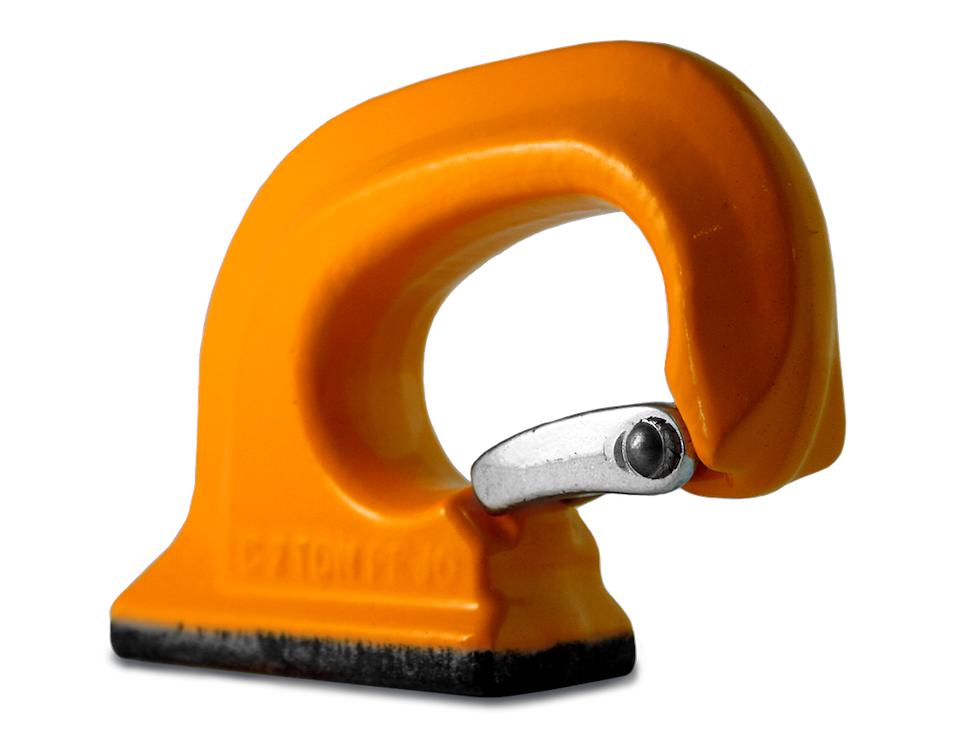

Type C – For excavators
The PEJO safety hook, type C, provides a safe and reliable way of using your excavator bucket for lifting purposes. It is also suitable for use in different industrial manufacturing applications where safety is a prime concern when lifting. It is made of the highest quality forged steel and handles loads up to 18 ton.

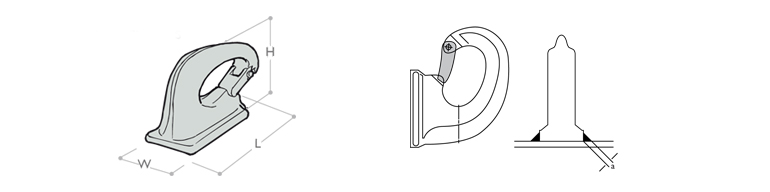

| Type | Part.no. | Reparation kit | Max load(ton) | L(mm) | H(mm) | W(mm) | Link diam(mm) | Welding Throat a(mm) |
| C201 | 65101 | 65301 | 1,0 | 105 | 76 | 30 | 21 | 4 (0.15″) |
| C202 | 65102 | 65302 | 2,0 | 130 | 93 | 35 | 25 | 4 (0.15″) |
| C203 | 65103 | 65302 | 3,0 | 133 | 100 | 35 | 25 | 6 (0.24″) |
| C204 | 65104 | 65304 | 4,0 | 177 | 125 | 42 | 38 | 6 (0.24″) |
| C205 | 65105 | 65304 | 5,0 | 185 | 133 | 44 | 40 | 6 (0.24″) |
| C206 | 65106 | 65304 | 6,0 | 198 | 141 | 50 | 40 | 8 (0.31″) |
| C208 | 65108 | 65308 | 8,0 | 250 | 170 | 60 | 45 | 8 (0.31″) |
| C210 | 65110 | 65308 | 10,0 | 255 | 175 | 70 | 50 | 8 (0.31″) |
| C215 | 65115 | 65308 | 18,0 | 290 | 190 | 80 | 50 | 10 (0.48″) |
