Find your profile
Profiles (500HB)

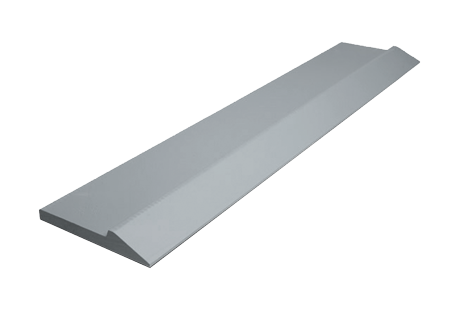

Profiled cutting edges are used for added protection of the base edge. They can either be bolted or welded on. The half arrow edges can also be used as side cutters. Half arrow edges are available in thickness from 11 to 40 mm and a width from 101 to 254 mm.
| Part.no. | Dimension (height x thickness x length) mm | Weight(kg) | Full bundle(pcs) |
| 5110121-3 | 101×21 / 11×3000 | 28 | 4 |
| 5110121-6 | 101×21 / 11×6100 | 57 | 4 |
| 5115132-3 | 151×32 / 16×3000 | 62 | 4 |
| 5115132-6 | 151×32 / 16×6100 | 125 | 4 |
| 5120332-3,6 | 203×32 / 19×3660 | 112 | 4 |
| 5120332-6 | 203×32 / 19×6000 | 183 | 4 |
| 5125457-3,6 | 254×57 / 29×3660 | 236 | 4 |
| 5125468-3,6 | 254×68 / 40×3660 | 319 | 4 |
