Mechanical side shroud

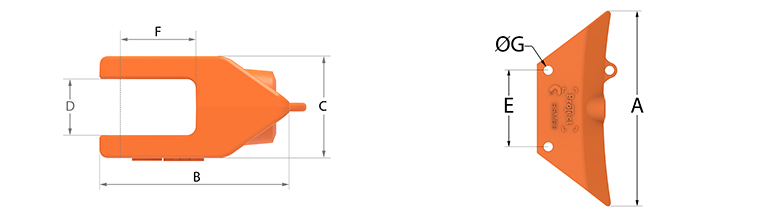

Mechanical side shroud is used to protect the bucket side plates and fastened with pin and ring.
| Type | Part.no. | Side wall thickness |
Weight(kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
| SSM (Shroud) |
700601 |   |
63,5 | 40,2 | 220 | 215 | 564 | 65 | 115 | 109 |
| SSM (Shroud) |
700602 | |
50,0 | 28,6 | 190 | 189 | 500 | 52 | 98 | 95 |
| SSM (Shroud) |
700603 | |
60,0 | 41,2 | 220 | 215 | 564 | 63 | 115 | 109 |
| SSM (Shroud) |
500603 | |
80 | 112 | 101 | 310 | 666 | 82 | 192 | 287 |
| SSM (Shroud) |
500604 | |
90 | 110 | 101 | 310 | 666 | 92 | 192 | 287 |
| SSM (Shroud) |
500605 | |
35 | 23,9 | 69 | 200 | 460 | 36,5 | 112 | 169 |
| SSM (Shroud) |
500606 | |
40 | 23 | 69 | 200 | 460 | 41.5 | 112 | 169 |
| SSM (Shroud) |
500607 | |
50 | 45,9 | 82 | 245 | 570 | 51,5 | 142 | 204 |
| SSM (Shroud) |
500608 | |
60 | 43,8 | 82 | 245 | 570 | 61,5 | 142 | 204 |
