Mechanical lip shroud right
15° angle, from excavating direction. For delta and spade nose buckets.

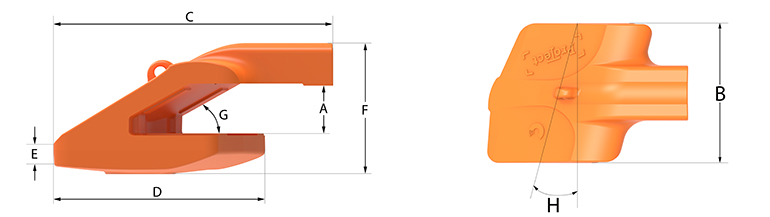

| Type | Part.no. | Weight(kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G° | H° | |
| MSRL (LS75) | 800403 |   |
118,4 | 78 | 370 | 532 | 354 | 34 | 238 | 30 | 15 |
| MSRL (LS90) | 800406 | |
116,0 | 93 | 370 | 532 | 354 | 34 | 253 | 30 | 15 |
| MSRL (LS100) | 800409 | |
167,1 | 103 | 420 | 604 | 402 | 38 | 283 | 30 | 15 |
