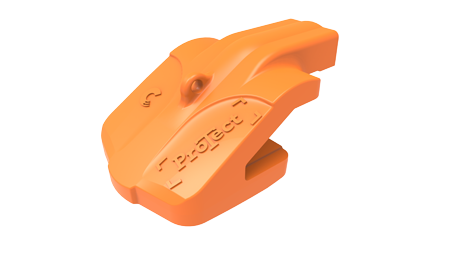

Mechanical lip shroud left
15° angle, from excavating direction. For delta and spade nose buckets.

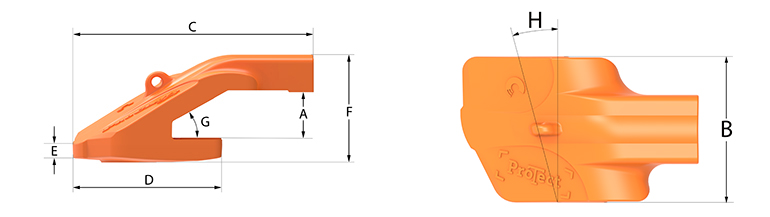

| Type | Part.no. | a(°) | Weight(kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G° | H° | |
| MSLE (LS90) | 700405 |  |
15 | 81,4 | 93 | 320 | 511 | 288 | 32 | 228 | 30 | 15 |
| MSLE (LS100) | 700408 | |
15 | 108 | 103 | 350 | 571 | 323 | 36 | 256 | 30 | 15 |
| MSLE (LS120) | 700411 | |
15 | 150 | 123 | 395 | 651 | 355 | 39 | 292 | 30 | 15 |
