Bottom leg for face shovels

Bottom leg for face shovels

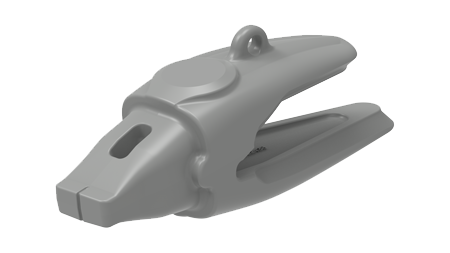

Standard bottom leg adapter. Low profile design, improved flow of material in and out of bucket.

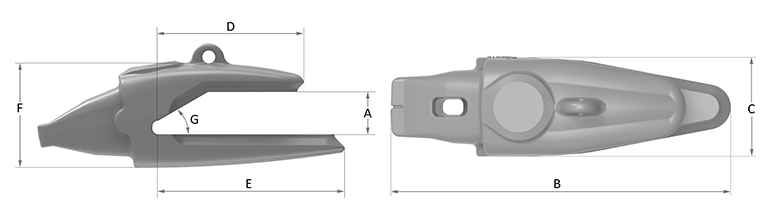

ProClaws Excavator adapter BE Duo View_72
Type Part.no. Weight(kg) Lip thickness(mm) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(°)
BE (W20) 720010 Face shovel Excavator 40,5 70 72 545 157 227 329 186 10
BE (W20) 720011 Face shovel Excavator 42,1 60 62 545 157 227 329 186 10
BE (W25) 725010 Face shovel Excavator 58,3 80 82 605 177 204 367 205 10
BE (W25) 725011 Face shovel Excavator 58,0 70 72 305 177 289 367 207 10
BE (W30) 730010 Face shovel Excavator 85,5 90 92 678 202 317 408 243 10
BE (W40) 740010 Face shovel Excavator 127,0 100 102 760 226 364 457 274 10
BE (W40) 740014 Face shovel Excavator 142,0 120 123 814 226 394 498 294 10
BE (W50) 750010 Face shovel Excavator 170,5 120 123 831 248 394 498 301 10

ProClaws

Best possible wear protection with sharpness

The wear indicators on the ProClaws teeth and adapters ensure optimal performance at all times and signals when the part is due for change. Do you want more information? Feel free to get in touch.
